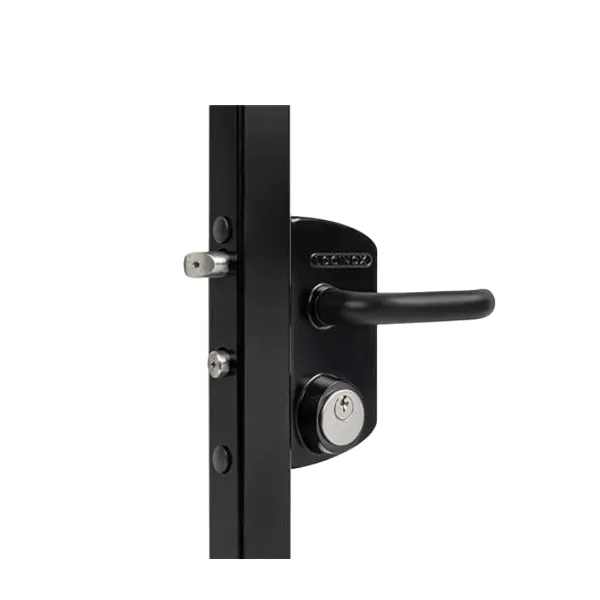

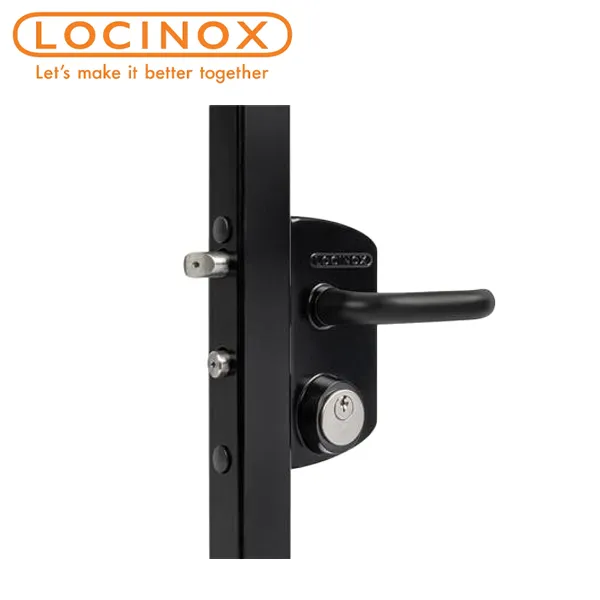

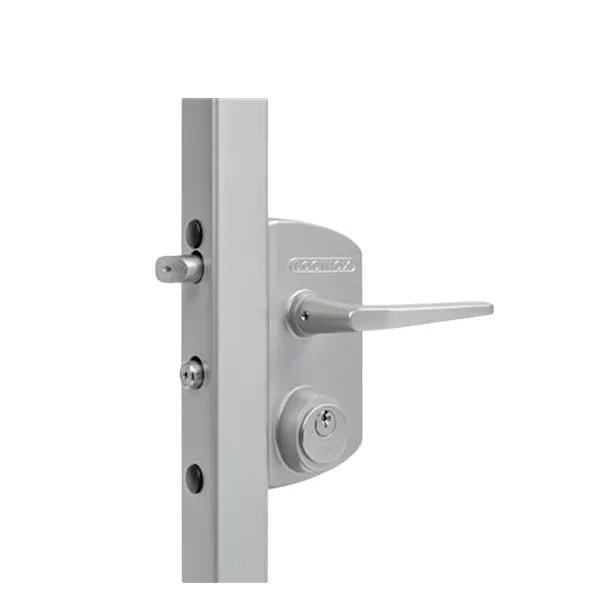

LCX- LUKY5050J5L

Excellent gate lock with aluminum housing and stainless steel mechanism. Specially developed to use with a standard 1-1/8" Mortise cylinder. Comes standard with 5pin keyed alike or keyed different (drilled 6pin). The latch and dead bolt have 3/8" continuous adjustment to allow perfect alignment of the locking mechanism. A stainless steel throw of 7/8" guarantees secure locking.

Features:

• ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
• Gate Lock with double cylinder dead bolt. Designed for 1-1/8" Mortise profile cylinder
• Fixing cylinder inch thread 8/32'
• Easy left or right changing of the self-latching daybolt
• Throw of the dead bolt, 7/8" in 1 turn of the key
• Key-operated self-latching bolt, allows Free Exit application
• Adjustment of the bolts up to 3/8" continuous without removing the lock
• 4-hole mounting with two hex head socket screws
• Interchangeable with all Locinox locks
• The lock box requires a 3-3/8" spacing to the first picket, fitting nicely into most gates

• 3 Year Warranty
• Includes 2 Keys
